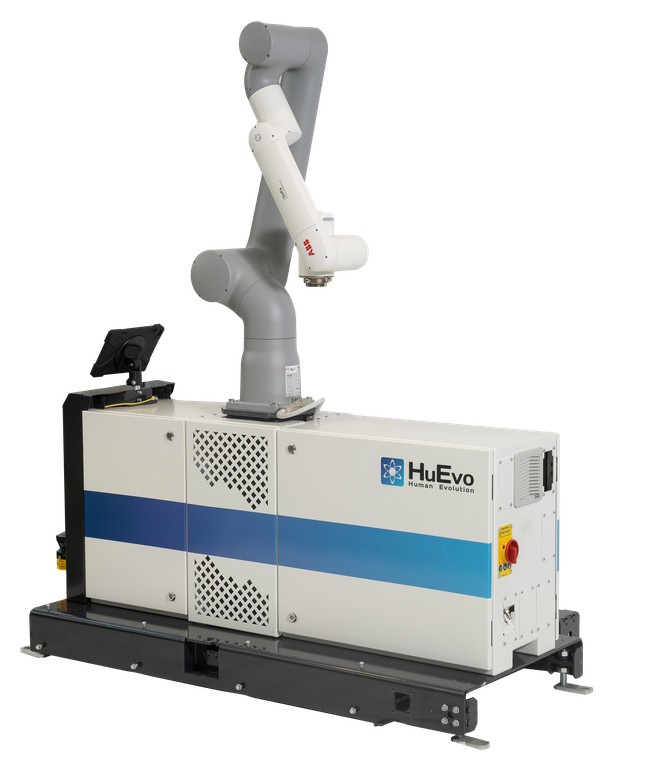

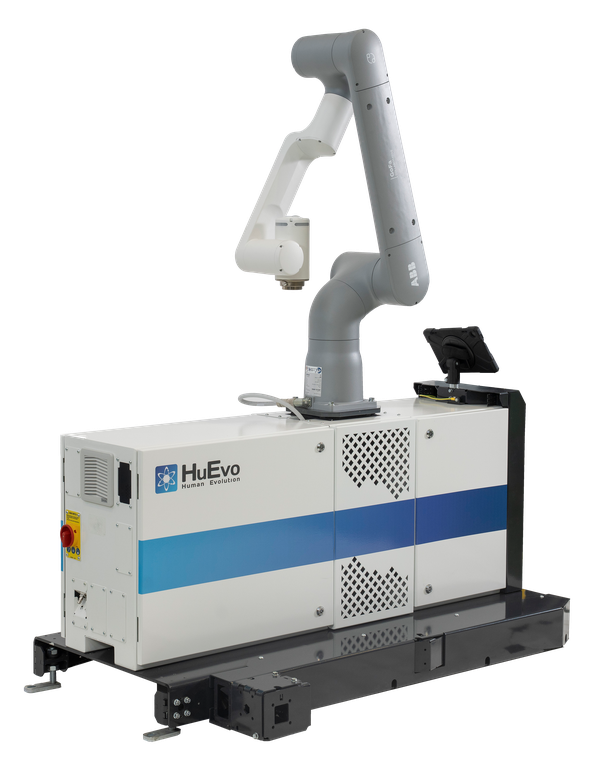

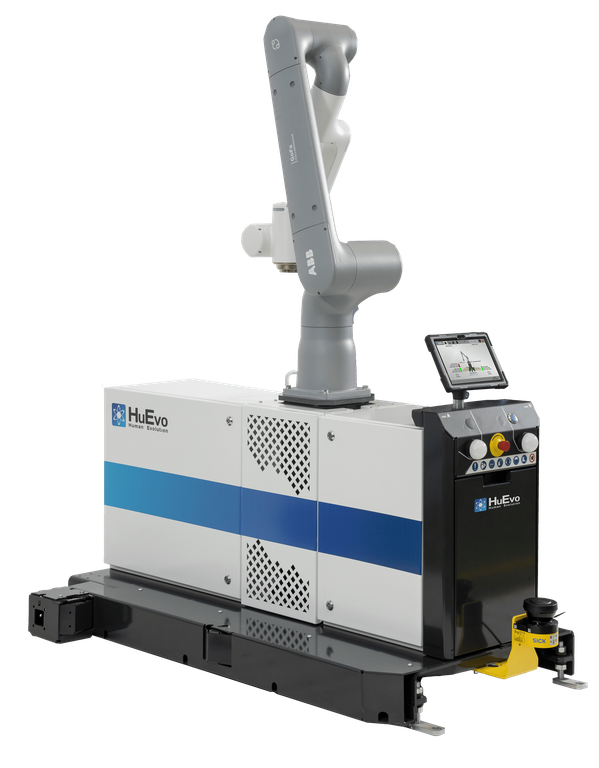

CP10 AB

Braccio & Specs: ABB GoFa 10 | Payload: 10 kg | Sbraccio: 1620 mm
Short Description: Massima agilità per fine linea ultra-compatti e scatole di piccolo formato.
Settori: Food & Beverage, Logistic & E-Commerce, Machinery & OEM

Palletizer

CP10 AB

Product Name

CP10AB

Product Family

Cobot Palletizer

Arm Model

ABB GoFa 10

Arm Payload

10 Kg - 25.0e lb

Arm Extension

1620 mm - 63.78 in

Max Pallet Height

1600 mm - 62.99 in

Max Pallet with 7th axes

Not Available

Accuracy

'+ - 0.03 mm / + - 0.00118 in

Degress of Freedom

6 optional 7

Max Cycle Time

6 - 8 cycle/minute

Machine Interface

Runtime Siemens Unified

End of Arm Tooling Type Standard

Pneumatic / Electric

Code Reader Available

Vision System, Barcode, QR code reader, RFID, BLE

Safety

Fence with light courtain, Safety Scanner

Interlayer

Not Available

Pallet Available

Optional Available Power Supply

230/240 VAC - 50/60 Hz 16A 1P + N

Arm ISO certification

ISO 10218-1:2011 and the applicable portions of ISO/TS 15066, ISO 13849-1:2015, IEC 60204-1:2016
The product is compliant with ISO 10218-1:2011

MES Connectivity

OPC UA

Short Description

Massima agilità per fine linea ultra-compatti e scatole di piccolo formato.

Market Segments

Food & Beverage ; Logistic & E-Commerce; Machinery & OEM; Pharma; Beauty & Personal Care; Agro Innovation & Vertical Farming

Warranty expiration

Standard 12 Months - Optional Extendable to 24 Months
