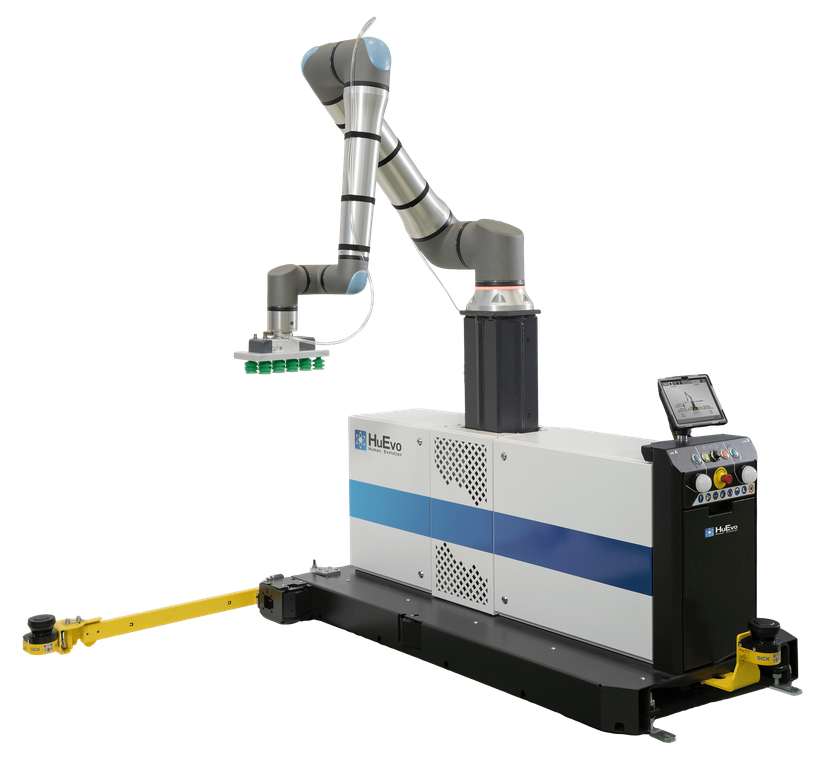

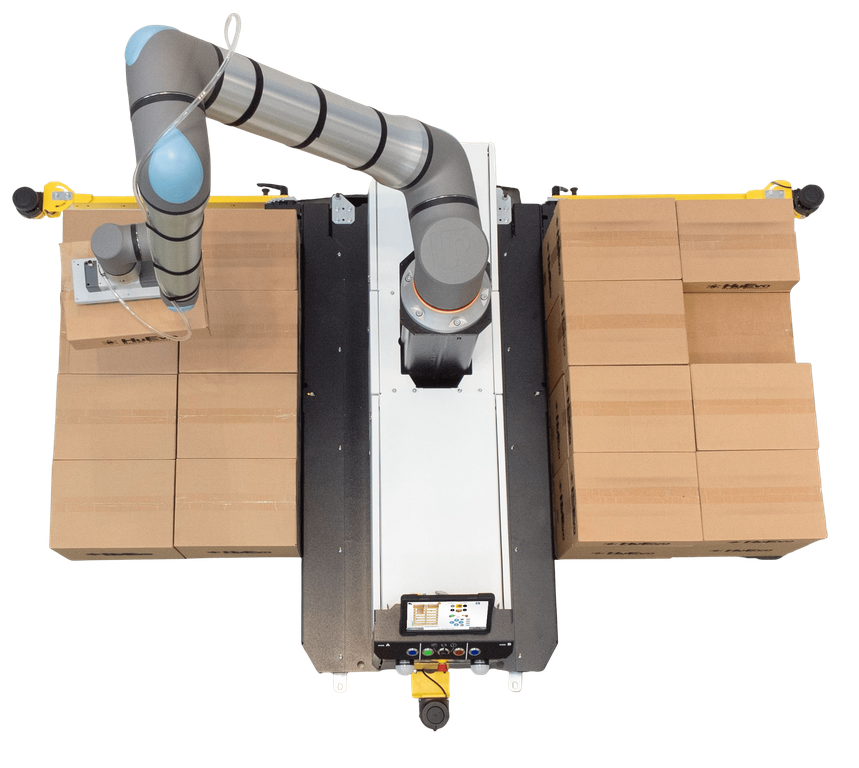

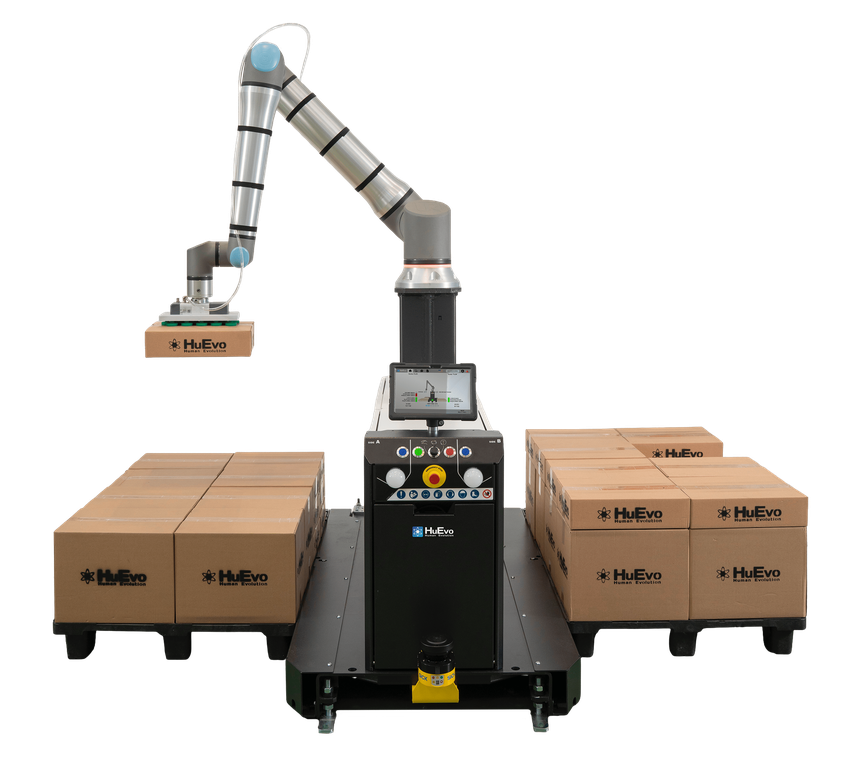

CP20UR

Braccio & Specs: Universal Robots UR20 | Payload: 20 kg | Sbraccio: 1750 mm Short Description: Integrazione nativa UR per la massima flessibilità di programmazione e la massima delicatezza dei movimenti..
Settori: Food & Beverage, Logistic & E-Commerce, Machinery & OEM, Pharma, Beauty & Personal Care

Palletizer

CP20UR

Product Name

CP20UR

Product Family

Cobot Palletizer

Arm Model

UNIVERSAL ROBOT UR20

Arm Payload

20 Kg - 44.09 lb

Arm Extension

1750 mm - 68.90 in

Max Pallet Height

1800 mm - 70.87 in

Max Pallet with 7th axes

2600 mm - 102.36 in

Accuracy

+ - 0.05 mm / ±0.00197 in

Degress of Freedom

6 optional 7

Max Cycle Time

8 - 10 cycle/minute

Machine Interface

Runtime Siemens Unified

End of Arm Tooling Type Standard

Pneumatic / Electric

Code Reader Available

Vision System, Barcode, QR code reader, RFID, BLE

Safety

Fence with light courtain, Safety Scanner

Interlayer

Optional left and right

Pallet Available

EU / US

Optional Available Power Supply

230/240 VAC - 50/60 Hz 16A 1P + N

Arm ISO certification

EN ISO 13849-1 (PLd Category 3)
and EN ISO 10218-1

MES Connectivity

OPC UA

Short Description

Integrazione nativa UR per la massima flessibilità di programmazione.

Market Segments

Food & Beverage ; Logistic & E-Commerce; Machinery & OEM; Pharma; Beauty & Personal Care; Agro Innovation & Vertical Farming

Warranty expiration

12 Months - Extendable to 24 Months
