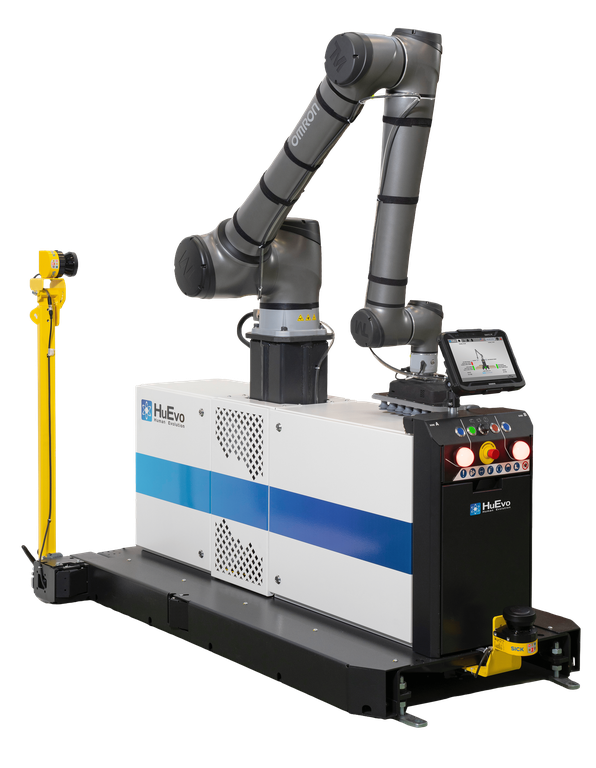

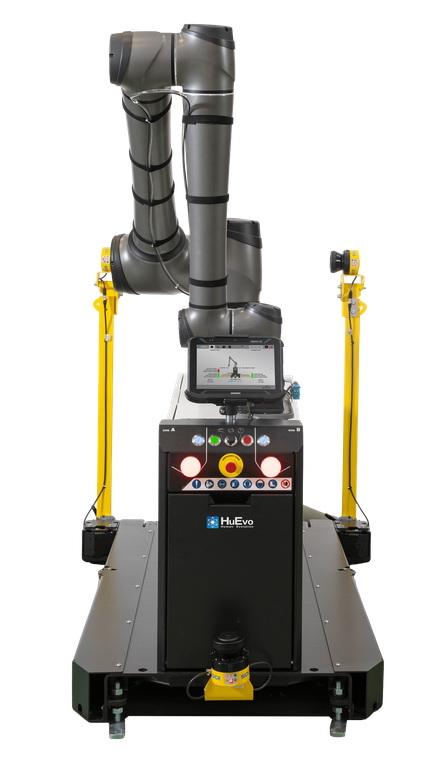

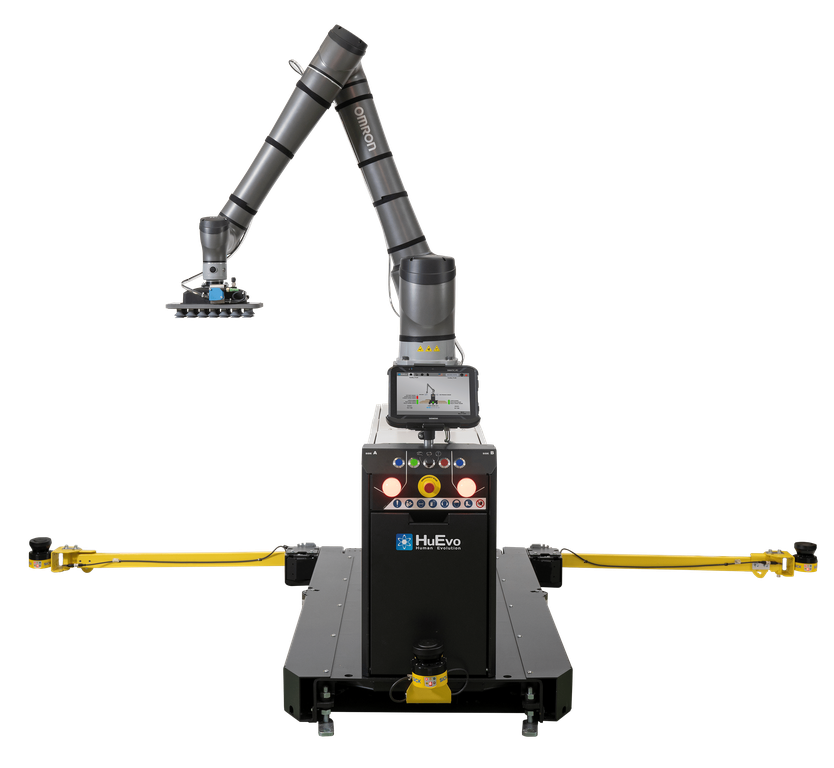

CP25OM
Arm & Specs: OMRON TM25S | Payload: 25 kg | Reach: 1900 mm
Palletizer
CP25OM
Product Name
CP25OM
Product Family
Cobot Palletizer
Arm Model
OMRON TM25S
Arm Payload
25 Kg - 55.12 lb
Arm Extension
1900 mm - 74.80 in
Max Pallet Height
1800 mm - 70.87 in
Max Pallet with 7th axes
2600mm - 102.36 in
Accuracy
0,3%-5% full scale
Degress of Freedom
6 optional 7
Max Cycle Time
8 - 10 cycle/minute
Machine Interface
Runtime Siemens Unified
End of Arm Tooling Type Standard
Pneumatic / Electric
Code Reader Available
Vision System, Barcode, QR code reader, RFID, BLE
Safety
Fence with light courtain, Safety Scanner
Interlayer
Optional left and right
Pallet Available
EU / US
Optional Available Power Supply
230/240 VAC - 50/60 Hz 16A 1P + N
Arm ISO certification
EN ISO 13849-1 (PLd Category 3)
and EN ISO 10218-1
MES Connectivity
OPC UA
Short Description
The heavy-duty performer in the range, engineered for high reliability with heavier loads.
Market Segments
Food & Beverage ; Logistic & E-Commerce; Machinery & OEM; Pharma; Beauty & Personal Care; Agro Innovation & Vertical Farming
Warranty expiration
12 Months - Extendable to 24 Months
